K • POD Tweaks

The Elecraft K • POD remote control is a welcome accessory for my K4D transceiver. Early-on I found I needed a reminder of which functions are assigned to its eight programmable buttons. Also, the stand tilts it too high for my taste. If I swivel the stand all the way toward the front, the tilt is less, but then the K • POD rocks when I press the upper four buttons, and when I rotate the knob using the finger dimple.

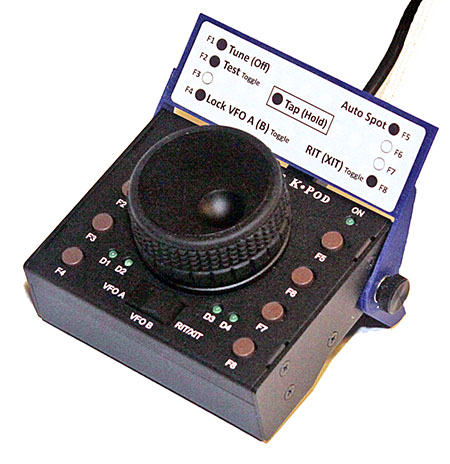

So I used my 3D printer to tweak the K • POD. I printed a holder for a label to show me which functions I've assigned to the buttons. I also 3D-printed a shortened stand.

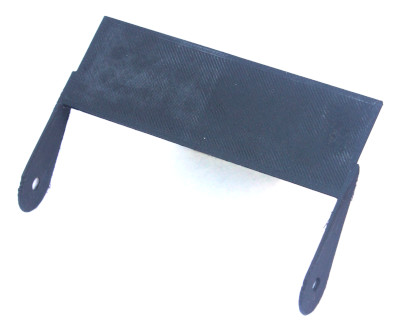

The Label holder

The K • POD's programmable pushbuttons are a great feature, but sometimes I don't remember which one to press for a particular function. I had already designed a short stand (below), so I morphed that into a holder for a self-adhesive label.

My Brother QL-570 label printer (replaced by the QL-800) can print DK-1201 1" x 3½" address labels, and the K • POD is about the same width. The label holder arms are spaced so they fit over the stand's arms, and thin enough to use the original thumb screws.

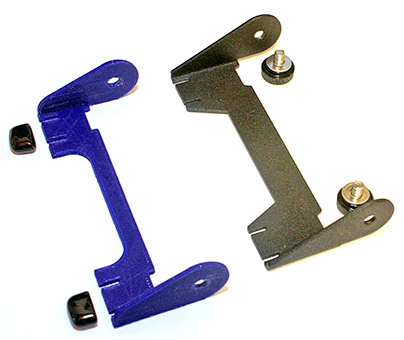

The Short Stand

I designed and printed a short stand. The plastic material is the same thickness as the original metal so the ears are flush with the K • POD case, and the original factory non-skid feet slip right on. Now my K • POD is tilted just right.

Tweak Your Own K • POD – $25.00
Free Shipping to USA Address
Sorry, no internatioinal shipping at this time

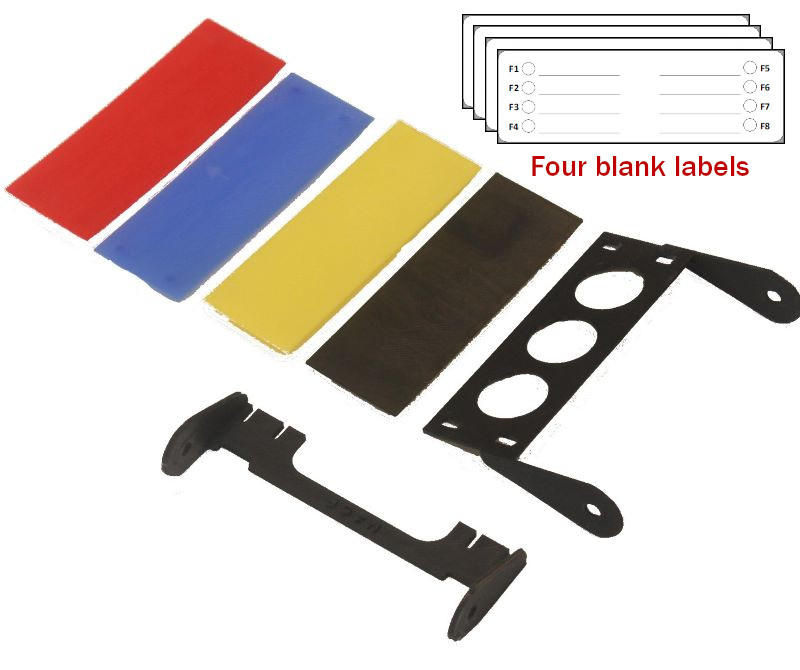

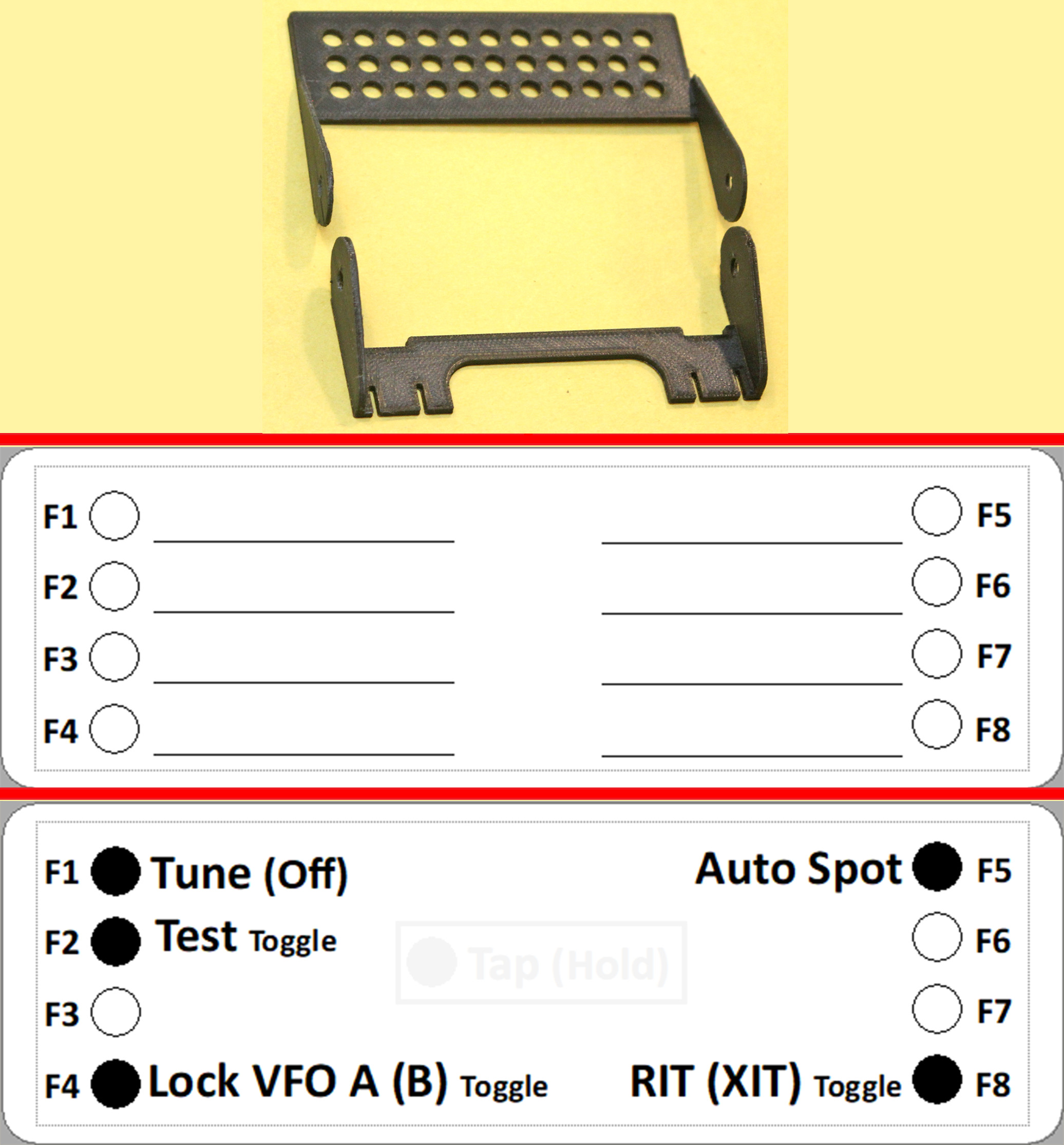

Add these parts to your own K • POD. This photo shows what you get:

One label holder (top)
One short stand (bottom)
Three 1"x3½" self-adhesive labels with space to write your K • POD button assignments (top label).

♡ Send me a list of your current button assignments, and I'll customize one of the three labels with those printed on it, and their circles blackened (example, bottom label).

Please read the installation instructions below.

☞ Use a fine-tip permanent marker (Sharpie) to write on these labels. Water- and oil-based inks don't dry well, and can smear.

Handle these parts with care. They are 3D-printed using PLA material, which is fairly strong and well-suited to this application. But it is plastic, and can break under heavy force.

Note: These perforated label holders are early versions. The current holder is solid, as seen above, for better label adhesion.

Choose a color from the left list to buy the stand and label holder, or from the right list to buy just the label holder. Click Add To Cart.

Confirm your order and check out.

Please allow a couple of days for me to print the parts and clean them up, then package and ship your order. (Printing the two parts takes three hours!)

New! Print your own K • POD Tweaks – $15.00

If you have a 3D printer, you can print your own parts and save money.

Here's how it works: Click the Buy Now button below, then check out. I will email you a license as a PDF file, along with the STL files for the parts. Open these files with your slicer software to produce G-code, then print the parts on your 3D printer.

Important! The license entitles you to print the parts you need for your own use. You may not print them for other people or provide the STL files to other people.

Order the license only if you agree to these conditions.

Installation Instructions

Here's how to install the short stand and the label holder on your K • POD.

Remove the two thumb screws holding the factory stand to the K • POD. Keep the flat washers.
If you don't want to replace the factory stand, skip the next four steps.
Note the orientation of the factory stand, and remove it.
Test-fit the 3D-printed stand. If it doesn't slide on easily, use a sharp knife or sandpaper to remove any excess plastic that prevents an easy fit.
Remove the soft plastic anti-skid feet from the factory stand, and attach them to the 3D-printed stand. Push them on carefully to avoid breaking the plastic stand.
Attach the short stand to the K • POD using the original thumb screws and flat washers.

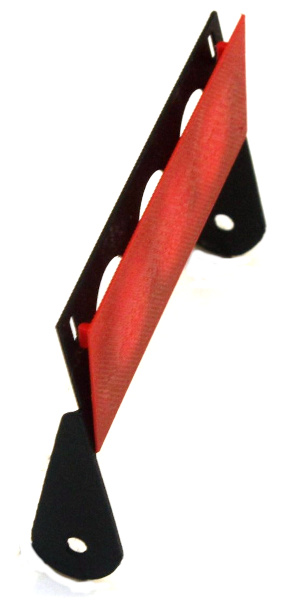

The label holder's arms fit over the stand arms. They are thin enough so the factory thumb screws can be used to attach the holder and the stand.
Remove the thumb screws and washers, and slide the label holder's arms over the stand arms. The arms project behind the holder.
If it doesn't slide on easily, use a sharp knife or sandpaper to remove any excess plastic. Work carefully, as the thin arms can break off.
With the label holder in place, secure both its arms and both the stand's arms with the thumb screws and flat washers. If your thumb screws are too short to catch a thread, discard the flat washers. Mine were long enough to keep the washers.
Adjust the stand and the label holder as desired, then tighten the thumb screws.
Apply a self-adhesive label to the holder, and use a permanent fine-tip marker to label your K • POD button assignments.
If it's necessary to remove the label, grasp the holder to prevent it breaking, then peel off the label starting at one corner. If the label resists, apply naphtha (lighter fluid) through the holes in the holder to loosen the adhesive. Naphtha also will clean adhesive residue from the holder. Do not use acetone or lacquer thinner, as these will dissolve the plastic.

Updated November 30, 2024
